TECHNISCHE DATEN MODELL 2018
Countries (1): Austria/Switzerland, Germany/EU
Speciality: 2 Seats
Saddle: höhenverstellbar
Frame: Steel
Forke: 100mm suspended Frontfork, lockable

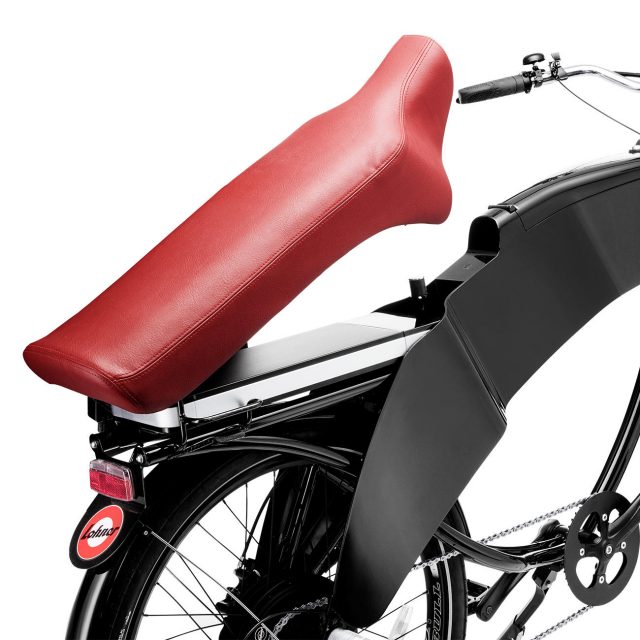

Storage: ~ 8 Litre stowage space, lockable
Wheel: 26″x2.15 with reflector stripes
Power Gear: electric wheel hub engine
Performance: Austria/Switzerland 500W, Germany/EU 250W
Performance maximum: Austria/Switzerland 800W, Germany/EU 600W
Torque: Austria/Switzerland 50 Nm (23 Nm nominal), Germany/EU 40 Nm (12 Nm nominal)
Battery: LiIon 48V, 11Ah, 672 Wh
Loading time: for 80% 3.30 hours
Charging current: 3 Amp
Gears: 8 Gears
Brakes: hydraulic Ø180 mm
Rekuperation: when breaking automatically
Maximum Speed: 25km/h legally defined
Electric support: in 3 Performance levels
Handlebar Accelaration: Austria/Switzerland up to 25 km/h (3), Germany/EU up to 6 km/h (2)
Pedal-Torque sensor: Austria/Switzerland up to 25 km/h, Germany/EU up to 25 km/h
Reach: up to 160 km in Pedelec mode
Classification: E-Bike (4) Pedelec
Beleuchtung: breitstreuender LED Scheinwerfer mit 3W
Weight: 34,5 kg
Additional Load maximum: Austria/Switzerland 190 kg, Germany/EU 150 kg

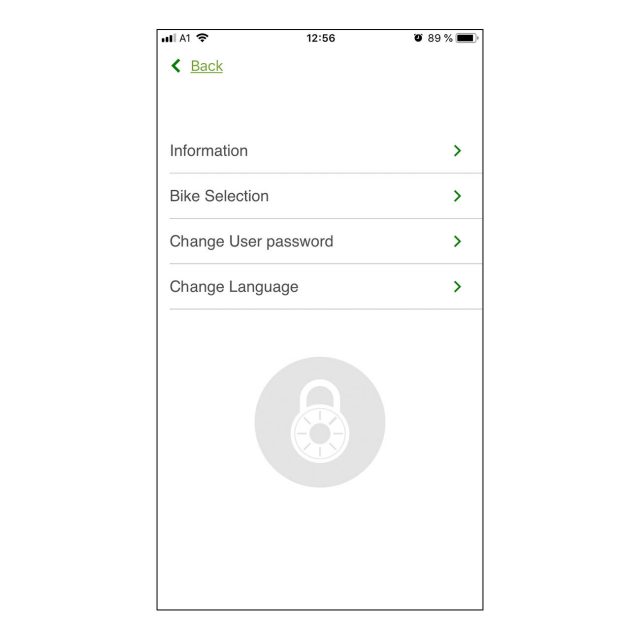

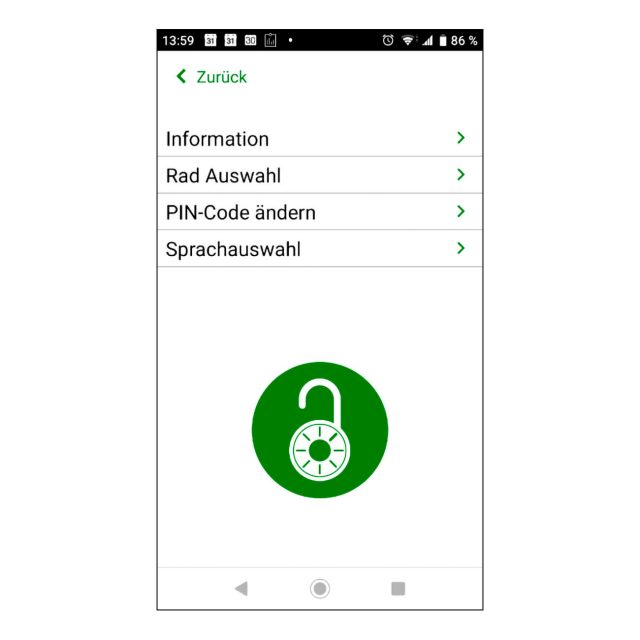

Display & Control: with Mobile Phone (Android , iOS) via bluetooth

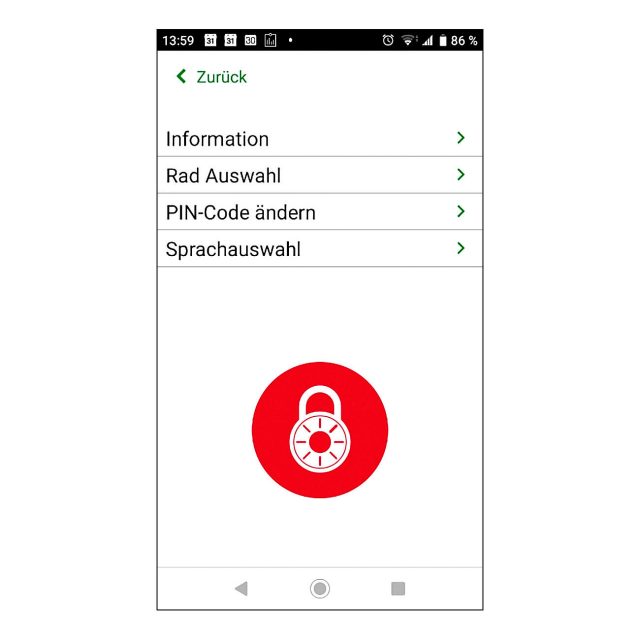

Security: with Mobile Phone Pin Code and LinkaLock
Upgrade-Kit 45 km/h: Austria/Switzerland yes, Germany/EU yes (5)
(1) Countries within Europe, others by request
(2) Limited by law, starting aid
(3) without pedaling, solely manual electric acceleration
(4) approved for bicycle lanes, helmets not mandatory, electric support up to 25 km/h
(5) Einzelgenehmigung durch Kunden
